SPAN500 Cold-Form
- Product Description
- Specifications
- Downloads
The 300 series product is an aluminum alloy scaffold formed by advanced nonwelding technology. The process consists of external pressing and internal expansion of joints using heat treated aluminium castings to hold the vertical and horizontal tubes together to form scaffold frame. Cold form frame is 3 times stronger than welded The cold form frame is 3 times stronger and more durable than the conventional welded frame and it carries a warranty period of 10 years.

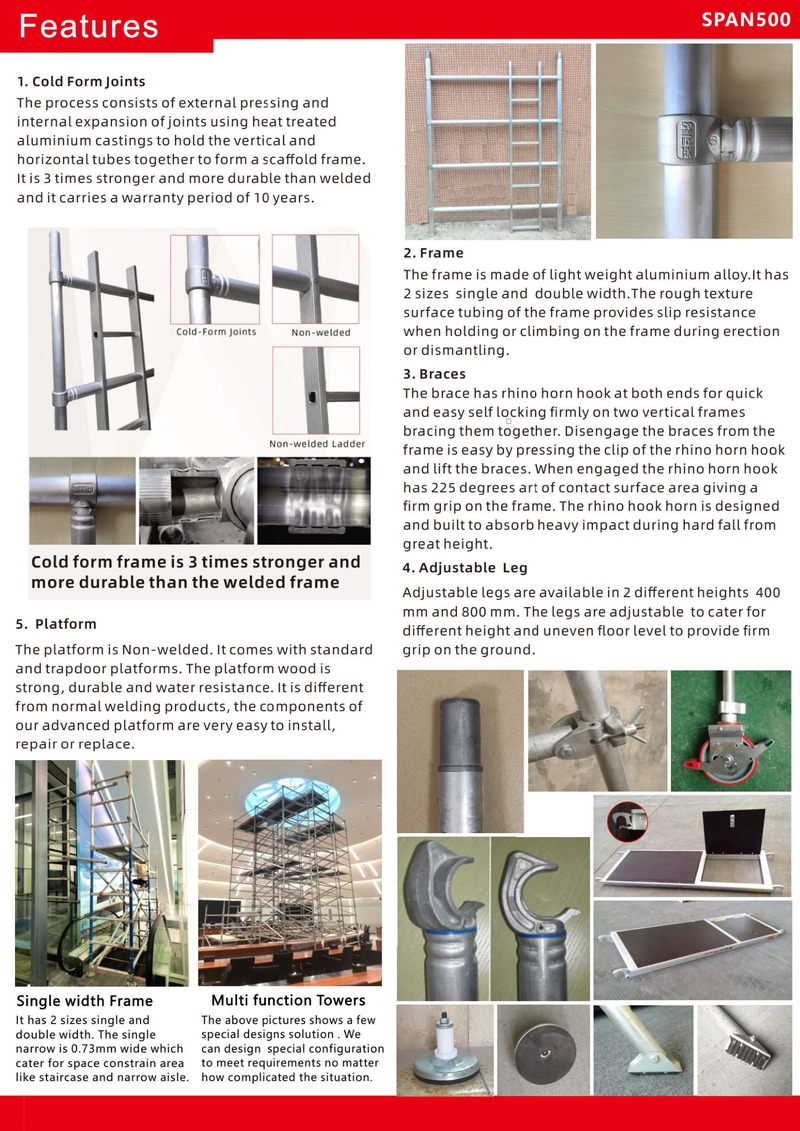

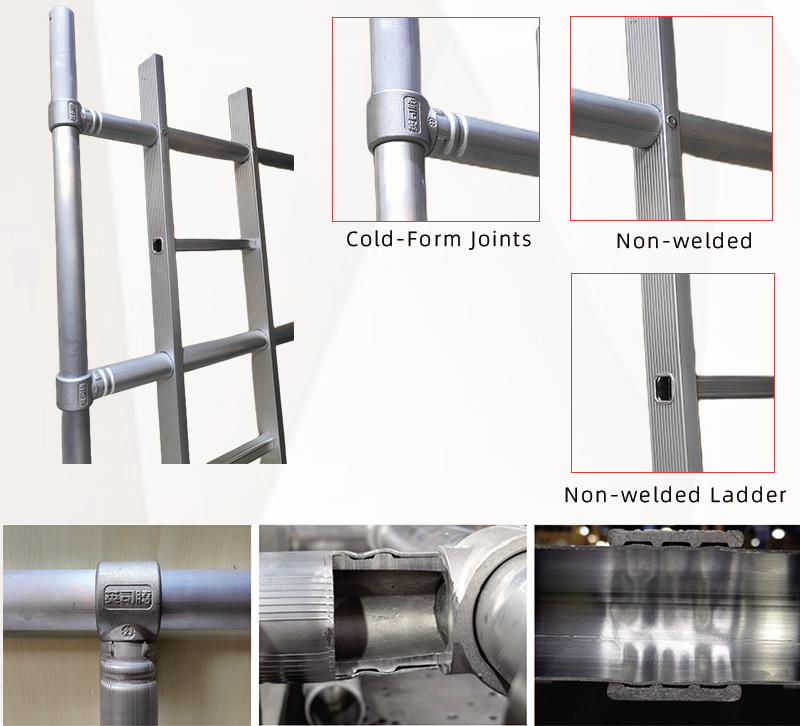

1. Cold Form Joints
The process consists of external pressing and internal expansion of joints using heat treated aluminium castings to hold the vertical and horizontal tubes together to form a scaffold frame. It is 3 times stronger and more durable than welded and it carries a warranty period of 10 years
2. Frame

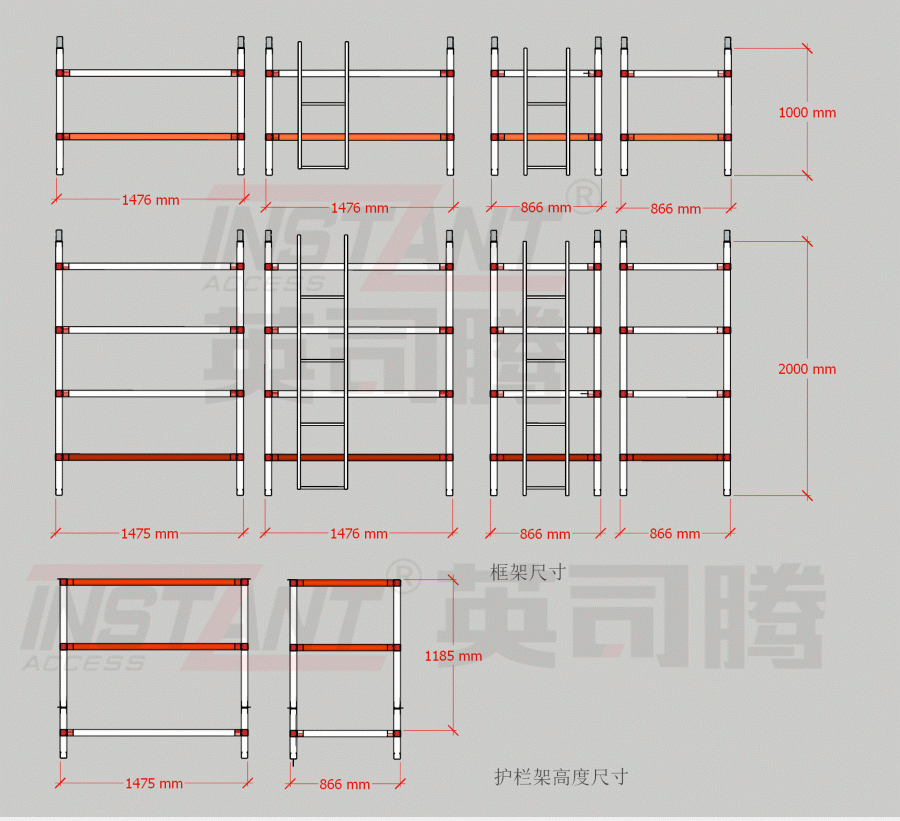

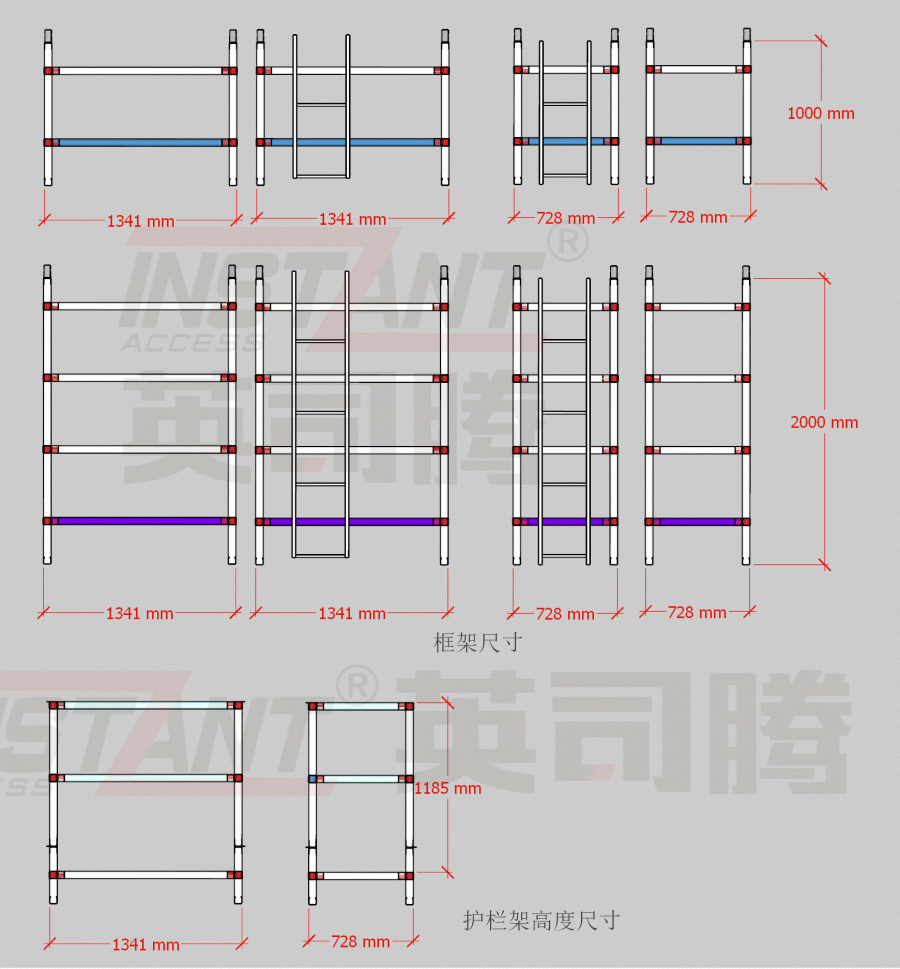

The frame is made of light weight aluminium alloy.It has 2 sizes single and double width.The rough texture surface tubing of the frame provides slip resistance when holding or climbing on the frame during erection or dismantling.
3. Braces
The brace has rhino horn hook at both ends for quick and easy self locking firmly on two vertical frames bracing them together. Disengage the braces from the frame is easy by pressing the clip of the rhino horn hook and lift the braces. When engaged the rhino horn hook has 225 degrees arc of contact surface area giving a firm grip on the frame. The rhino hook horn is designed and built to absorb heavy impact during hard fall from great height.
4. Adjustable Leg
Adjustable legs are available in 2 different heights 400 mm and 800 mm. The legs are adjustable to cater for different height and uneven floor level to provide firm grip on the ground.
5. Platform
The platform is Non-welded. It comes with standard and trapdoor platforms. The platform wood is strong, durable and water resistance. It is different from normal welding products, the components of our advanced platform are very easy to install, repair or replace.

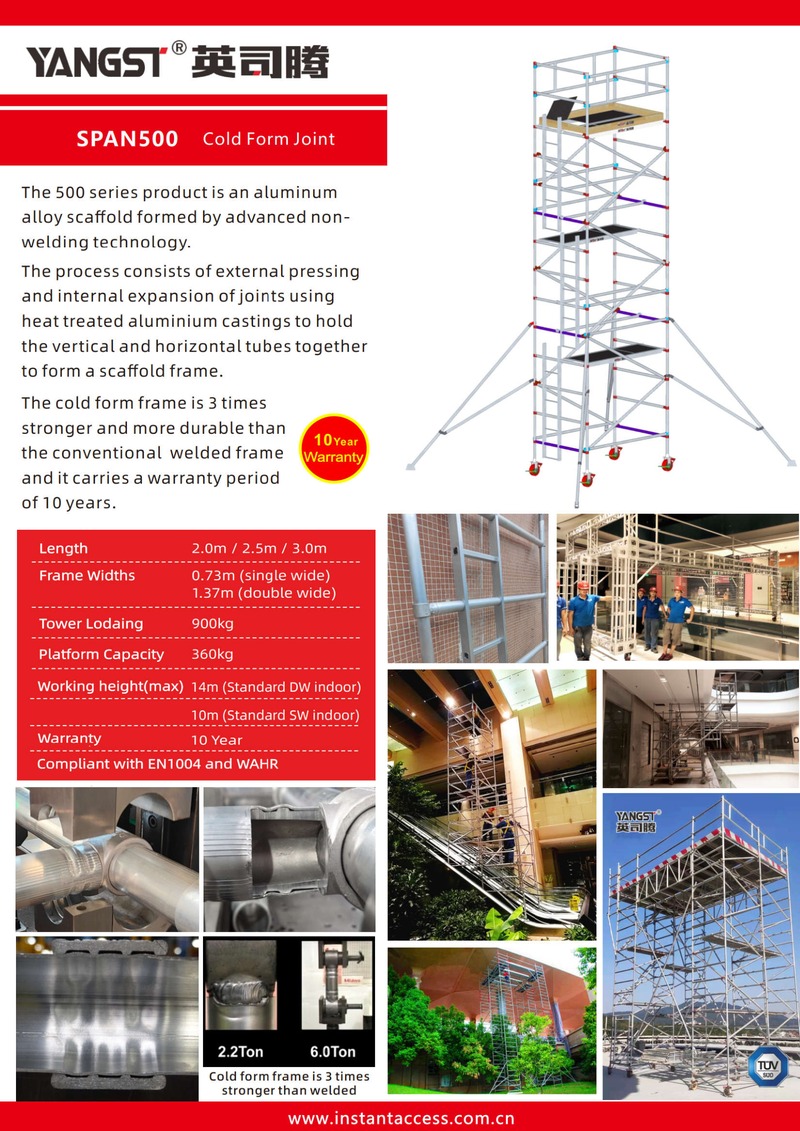

The 500 series product is an aluminum alloy scaffold formed by advanced nonwelding technology. The process consists of external pressing and internal expansion of joints using heat treated aluminium castings to hold the vertical and horizontal tubes together to form scaffold frame. Cold form frame is 3 times stronger than welded The cold form frame is 3 times stronger and more durable than the conventional welded frame and it carries a warranty period of 10 years.
Features：
Cold Form Joints, Assembled with cold pressed high-quality components
The distance between all of the rungs is 400mm, It can also choose a special 45 ° or 70 ° inclined ladder
Fluted ladder rungs for increased slip resistance when climbing
Flexible collocation, can assembled up to 40 meters
Easy to move, usually 2 to 3 people can easily (level ground）
Anti-slip plywood platform available in standard and trapdoor formats
All of the braces and stabilisers adopt cold expansion, cold pressing or cold processing technology, which is solid, durable and pressure resistant
Adjustable Leg gives up to 400mm of adjustment for quick and easy levelling
